45 Degree Silicone Elbow
More than 20 years of experience in manufacturing silicone hoses. We have IATF16949 and ISO9001 certifications,
providing 100% quality assurance and direct factory prices.

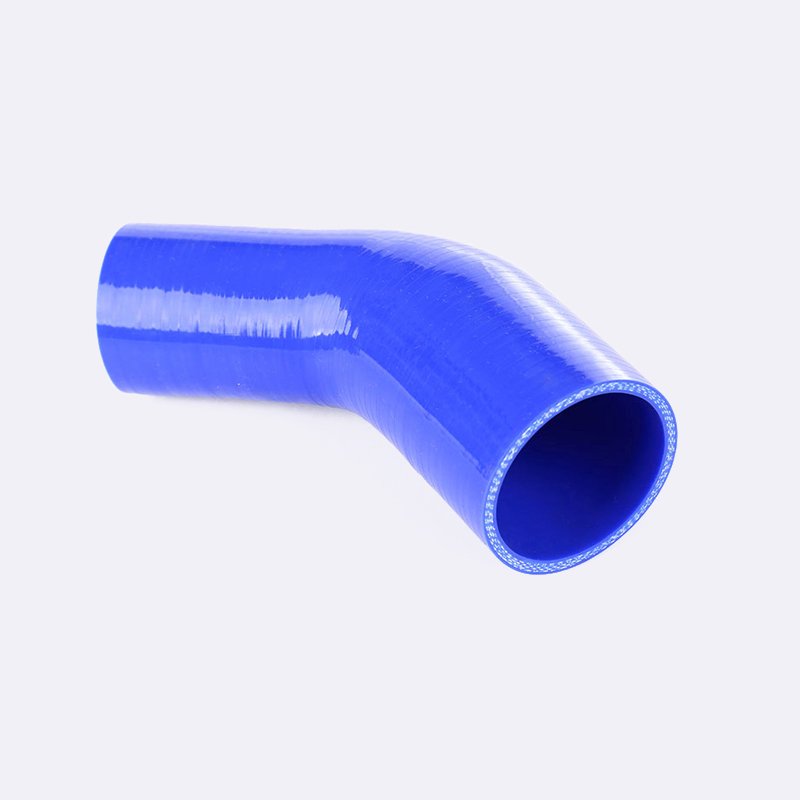

45 Degree Silicone Elbow Hose
Kinglin reinforced silicone 45-degree elbow hose connectors meet and exceed SAEJ20 industry standards, offering high temperature and high-pressure resistance.
They meet the high-performance requirements specified in various industry standards and are ideal for marine and industrial applications, custom turbo or intercooler piping fabrication, and DIY intake or radiator cooling systems.
- Extreme Temperature Resistance
- Blue, Red, Black, Green, Yellow, or customized colors
- Long-lasting performance with excellent resistance to aging, ozone, and UV
- Working Temperature Range：-60°C to +260°C
- Working Pressure：Up to 0.3 – 1.0 MPa (depending on diameter and reinforcement layers)
45 degree silicone elbow hose Manufacturer in China
Are you looking for a 45 degree elbow silicone hose manufacturer? Kinglin is your most reliable choice!
Our 45 degree elbow silicone hoses provide smooth fluid transfer in compact, angled applications. Compared to straight hoses, the 45° bend allows for better placement in limited engine compartment spaces, reducing stress on connections.
Our 45 degree elbow silicone hoses are ideal in terms of performance and reliability. Each hose is handcrafted from multiple layers of silicone rubber, and you can choose between polyester or aramid reinforcement layers. Our 45 degree elbow silicone hoses offer excellent resistance to high temperatures, pressure, aging, and corrosion, making them perfect for demanding automotive and industrial applications.
Kinglin provides professional custom silicone hose services. From materials, dimensions, colors, shapes, and logos, we tailor every detail to your specifications. Kinglin is committed to providing you with the best silicone hose products on the market.
Regardless of your order size, Kinglin has the capacity to support you. From sample production of 45 degree elbow silicone hoses to mass production, we provide the same rigorous quality control and professional service for every order, helping you grow your business in your local market.
You can confidently choose Kinglin products; we provide you with the highest quality products and the best service.
Featured 45 Degree Silicone Elbow Hose Products
Our products adhere to the strict product quality standards of ISO 9001:2015 and IATF 16949:2016.
If you need other 45-degree elbow silicone hose sizes, please contact us. We support customization
custom 45 Degree Silicone Elbow
Customizable according to your requirements, our silicone hoses are manufactured in strict compliance with ISO 9001:2015 and IATF 16949:2016 standards

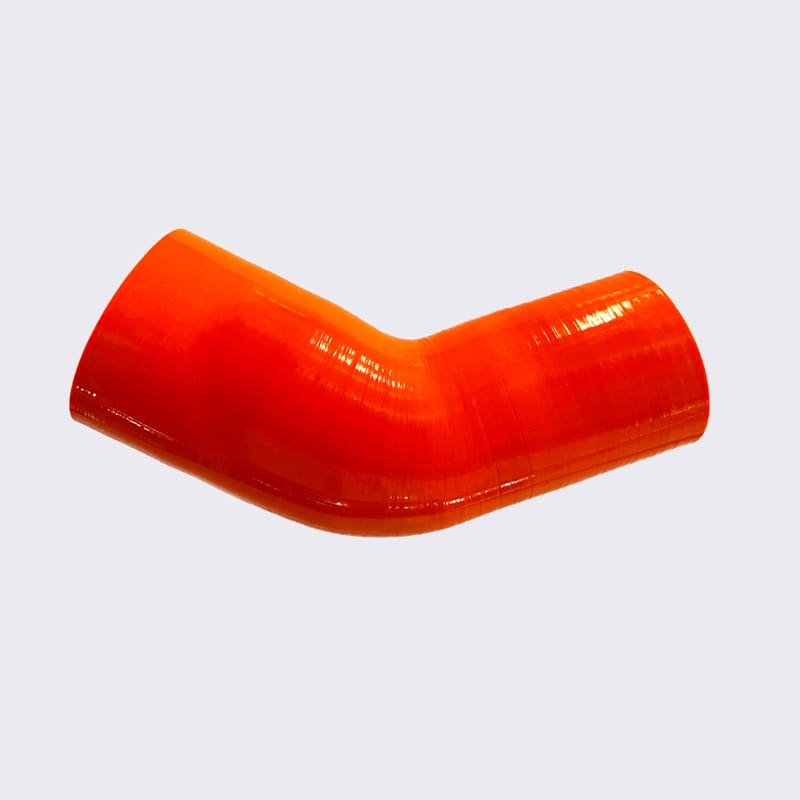

45 degree Reducer Elbow silicone hose
45 Degree Elbow Silicone Hose is made of 4 layers of aramid reinforcement and premium silicone and is designed for applications requiring high performance and extreme temperatures.
3 inch 45 degree silicone elbow
3-layer reinforced silicone hose is typically 4mm thick. Working pressure up to 80 PSI and burst pressure up to 245 PSI. Universal application to connect to turbine or intake ducts.

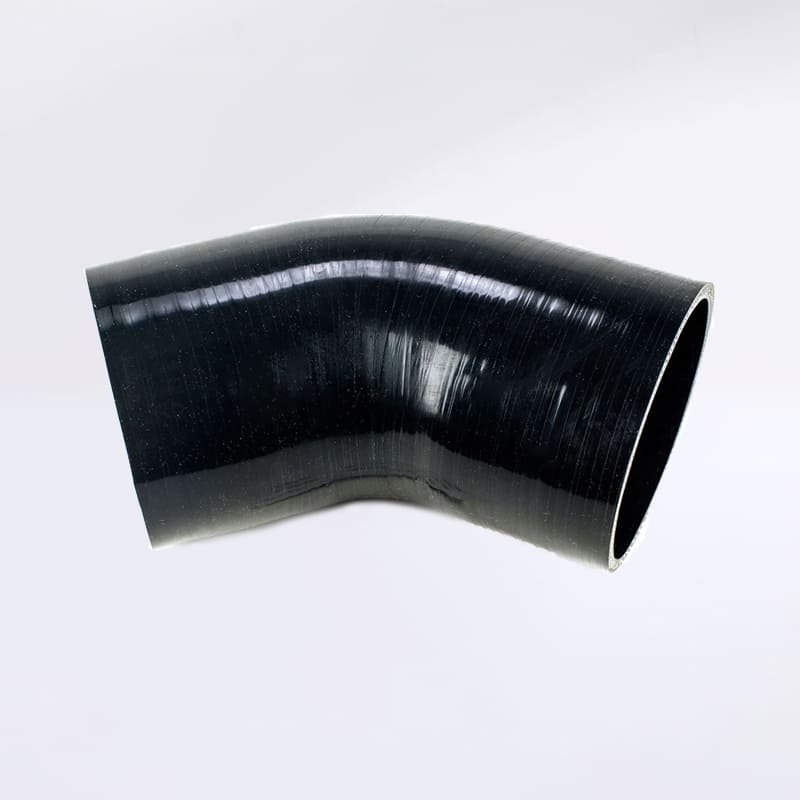

4 inch 45 degree intake elbow
4 inch 45 degree intake elbows are 3-ply polyester reinforced and are suitable for applications with boost pressures up to 45psi. They are rated to 428°F.

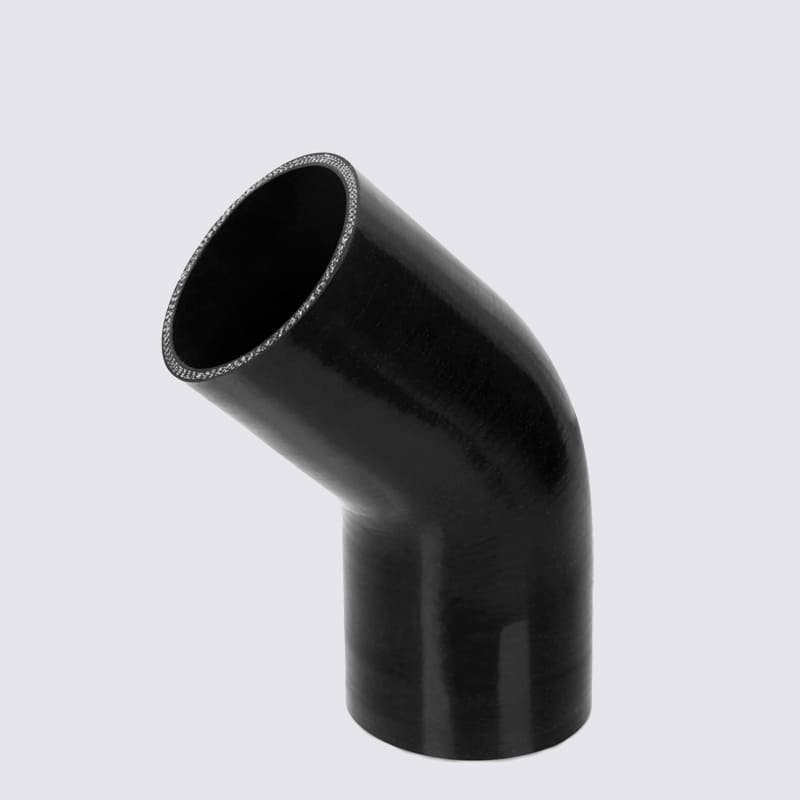

45 degree elbow silicone hose
45° Silicone Elbow hoses uses high temperature resistant aramid reinforced fabric to withstand operating temperature range of -60° C to 260° C. Suitable for water, coolant and air only.
45 Degree Elbow Coupler Silicone Hoses
Our 45 degree elbow coupler silicone hose meets or exceeds SAEJ20 standards. We have a wide range of standard sizes and can also customize them to your requirements.
china 45 degree silicone elbow coupler hose
Kinglin silicone hose manufacturer has more than 20 years of experience in hose production, customers all over the world, we can provide high-quality products and services
45mm silicon elbow 45 degree
45mm silicon elbow 45 degree meets and exceeds SAEJ20 industry standards and is ideal for marine and industrial use, custom turbine or intercooler piping fabrication, radiator cooling systems.
high temp silicone rubber 45 degree elbow
Our silicone rubber 45 degree elbow is heat resistant and can withstand an operating temperature range of -60° C to 260° C, suitable for water and air. If you want oil resistance, you can choose fluorosilicone material
2 inch 45 degree silicone elbow
Our 2 inch 45 degree silicone elbow has extremely high durability and pressure-bearing ability, making it an ideal choice for a variety of applications. Trust our quality and capabilities, we will provide you with the best quality products
Why Choose Our 45 Degree Elbow Silicone Hose
Professional Manufacturer
With rich manufacturing experience, we are a trusted factory for 45 degree elbow silicone hose production and export.
Reliable Supply
We ensure consistent quality and stable supply of 45 degree elbow silicone hose for long-term cooperation.
High Quality
Our 45 degree elbow silicone hoses are manufactured with strict quality control to ensure stable performance, precise dimensions, and long service life.
Factory Direct Price
As a direct manufacturer, we supply 45 degree elbow silicone hoses at competitive factory prices without middlemen.
Fast Delivery
With stable production capacity, our 45 degree elbow silicone hoses are produced efficiently to meet fast lead time requirements.
Custom Solutions
Our 45 degree elbow silicone hoses can be fully customized in size, centerline distance, and surface finish based on your needs.
45 Degree Elbow Silicone Specification
Bending angle: 45°
Material structure: inner and outer layers of high-performance silicone + multiple layers of polyester fiber or aramid braided layer (optional)
Working temperature: -60°C ~ +260°C
Pressure resistance: 1.5 ~ 2.5MPa (can be customized related to wall thickness/reinforcement layer)
Inner diameter range: 6 mm ~ 152 mm (support larger specifications customization)
Wall thickness: 3 mm ~ 10 mm (standard is 4.5 mm; support customization)
Length: The length of the straight section at both ends is 50~100 mm (adjustable as needed)
Surface treatment: glossy / matte / striped (optional)
Optional colors: blue / black / red / gray / transparent / (we have Pantone color cards, and can customize colors according to your needs)
Number of reinforcement layers: 3~5 layers (general use/high pressure use)
Certification standards: ISO9001, IATF16949, RoHS, FDA
Quality Assurance
We provide high quality 45 degree silicone elbow hoses, which are specially designed for the corner connection of the intake, cooling and supercharging systems of automobile engines.
Our 45 degree silicone elbow hoses have been tested in the laboratory and have excellent properties such as high temperature resistance, wear resistance, durability and ozone resistance, which are very suitable for high-performance vehicles.
Our 45 degree silicone elbow hoses are manufactured in strict accordance with the company’s production standards and ISO 9001:2015 and IATF 16949:2016 quality certification standards during the production process. We guarantee that the products you receive are the best.
Our Factory Strength
Our products are available in a wide range of sizes, with more than 10,000 standard silicone hose sizes.
If you want to customize silicone hoses, we have a professional design team that can provide free design drawings, free samples and tests to ensure that the products are 100% consistent with the drawings.

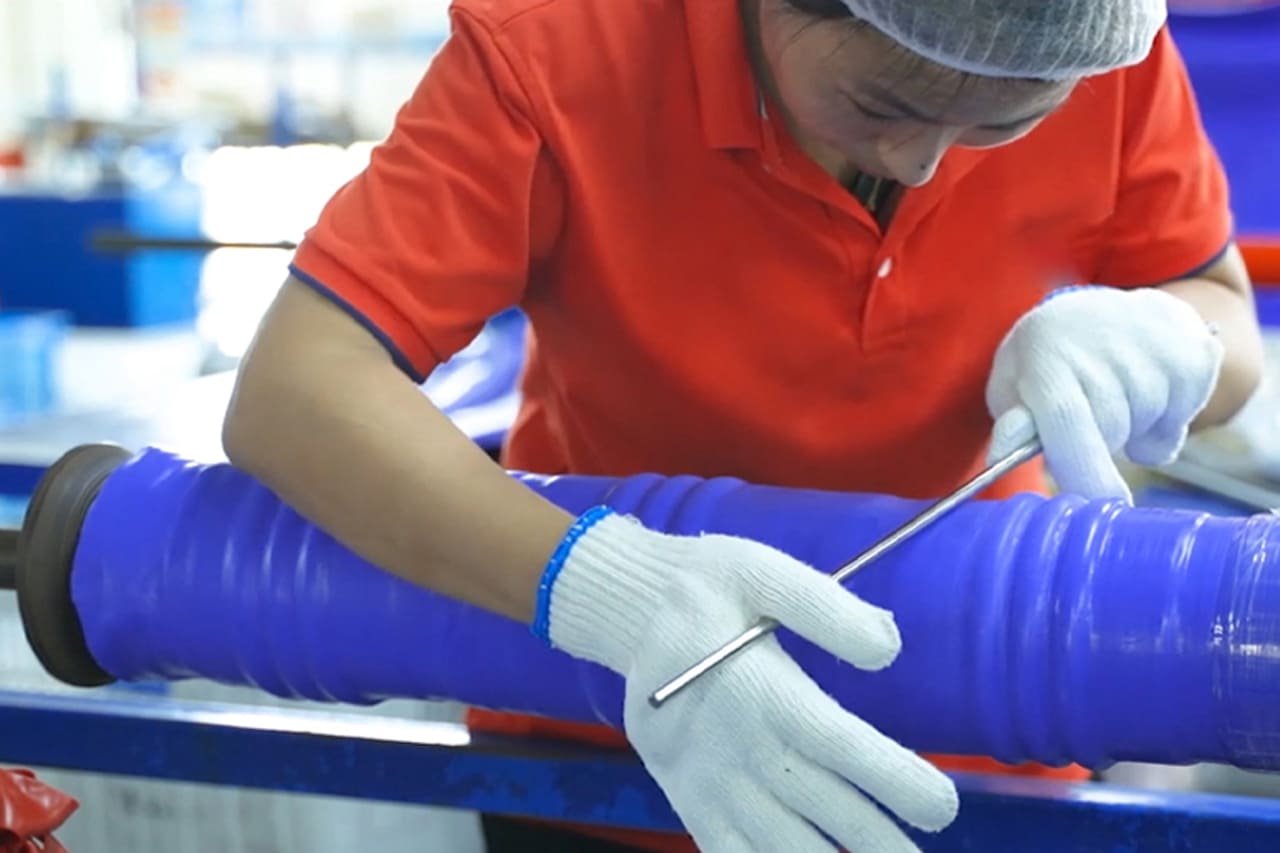

Our factory has rich production experience and advanced production equipment, with a monthly output of more than 500,000 pieces.
Our strong production capacity enables us to process orders quickly. Whether you have a minimum order quantity or a bulk order, we can deliver on time.
Choose to buy from our kinglin silicone hose factory, factory prices and professional services, which can help you save more costs and get more benefits.
Customized Service
We can customize the angle, wall thickness, length, size, etc., of the 45 degree silicone elbow hoses according to the drawings, samples, and sizes provided by customers. We have professional design and R&D personnel to support mold development.
Your LOGO, number, production date, product parameters, and other information can be printed on the 45 degree silicone elbow hoses.
Packaging supports customized color boxes, neutral bags, and export pallet packaging.
We have professional laboratories and testing equipment that can provide pressure testing, aging resistance testing, dimensional tolerance testing, and other reports to ensure that the 45 degree elbow silicone hose products meet your requirements.
Frequently Asked Questions
If your question is not listed, please email us now
Yes, you are welcome to visit our factory! We are located in Qinghe County, Hebei Province. You can come and see our production facilities, meet our team, and check out our hose clamp products. We are transparent about our operations and would be happy to show you how we ensure quality at every step of the process. If you’d like to visit, please let us know in advance so we can get ready and make sure you have a great experience. We look forward to meeting you and discussing how we can help you with our high-quality products.
Of course. In addition to the 45° standard silicone bend, we support customization of bends at any angle (such as 60°/75°/90°/120°, etc.), and can also adjust the length of the straight sections at both ends or the inner diameter/wall thickness according to customer needs.
Support customization
Express delivery, Shanghai Express, Iron Express, domestic agent warehouse, sea freight LCL, sea freight FCL.
The conventional wall thickness is 4.5mm, and can be made from 3 to 10mm depending on the pressure requirements. We will balance flexibility and pressure resistance to ensure smooth bending without deformation.
We offer a full range of specifications with inner diameters ranging from 6mm to 152mm, and can also arrange production according to your order requirements.
We use polyester or aramid braided layers, supporting 2 to 6 reinforcement layers, which can also be customized according to your needs to ensure that there is no bursting or bulging at the appropriate temperature.
The standard straight section is 50mm~100mm at each end, and the specific length can be customized according to your requirements.
